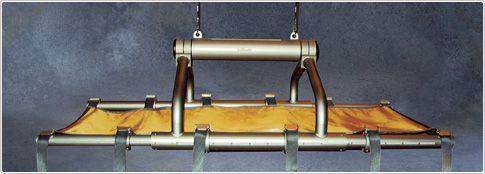

Horizontal lifter, Foldable, 2 strap version
Suitable when a stable horizontal lift is required. To be used with the GH2 HD Twin ceiling hoist (2 strap version).
The foldable horizontal lifter is intended for lifting and moving of patients in a horizontal position. The weight adjustment of the horizontal lifter is activated via the hand control of the lifting module.
The horizontal lifter is used together with the GH2 HD Twin ceiling hoist which has 2 lifting straps and in combination with a lifting cloth under the patient or with a set of sling straps.
Special locks for attaching the lifting sheet or the sling straps are available at both sides of the horizontal lifter. The locks are easy to use, as they have a self-locking function to ensure the attachment of the sling straps, and they also offer the possibility of adjusting the sling straps.
Furthermore, telescopic arms at each side offer the possibility of minimizing the size of the lifter when not in use. A wall bracket is provided for storage of the lifter. It folds the lifter so that it will take up a minimum of space on the wall.
The maximum load of the horizontal lifter is 550 lbs.
The weight of the lifter is approx. 59 lbs and the material is anodized aluminium.
FOLDABLE HORIZ. LIFTER 2-STRAP
